Introduction of MPP pipe production and installation

MPP power pipe production line production focus and pipe laying introduction

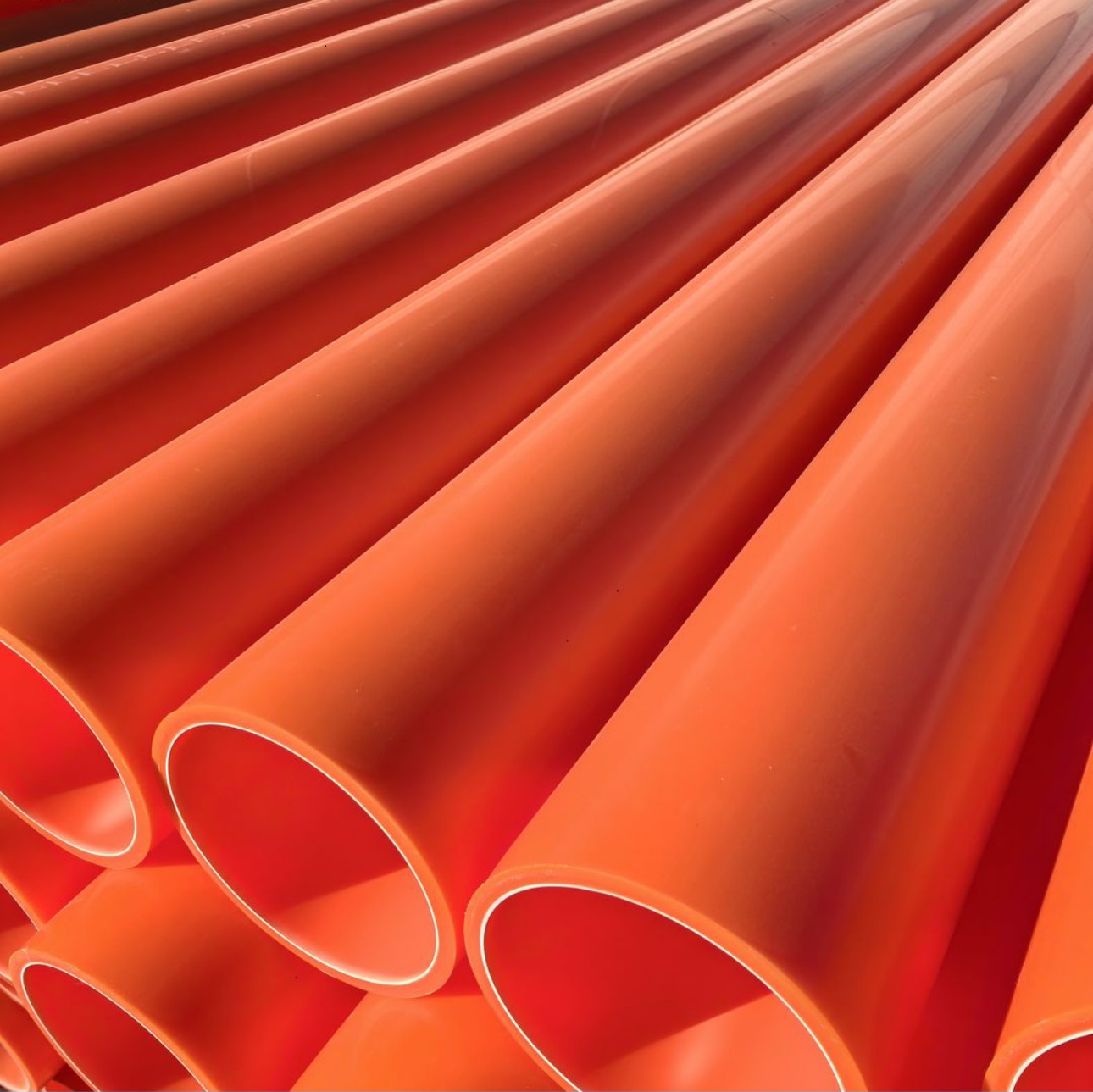

The MPP power pipe produced by the MPP power pipe production line adopts a porous integrated structure with uniform force. The inner wall friction coefficient of the product is small, the product is suitable for a wide temperature range, and can be used in tropical and cold regions. The joint adopts a sleeve structure. No tools are required to complete the connection between pipes, which is convenient for construction and maintenance.

MPP power pipes have become an indispensable part of the power industry. They can ensure the normal transmission of electricity and ensure that every link of power transmission is achieved.

Explanation of the production focus of the MPP power pipe production line:

1. Color: The color of the MPP power pipe is uniform and the color is generally selected as the original color;

2. Appearance: The wall of the MPP power pipe is not allowed to have bubbles, cracks, decomposition discoloration lines and obvious impurities. The inner and outer walls of the pipe are smooth and flat, and the inner side of the cut is required to be smooth;

3. Size and deviation, pipe length: The length of each straight pipe is 6000±30mm, and the manufacturing length of the MPP power pipe can also be determined by both the supply and demand parties. The outer diameter of the pipe, the small inner diameter of the single hole and their deviations shall comply with the regulations. The wall thickness deviation of the same section of the pipe shall not exceed 12%. The bending of the straight pipe in the same direction is less than 1%.

In the actual MPP power pipe construction, the length of each pipe may not be the same as the length between the manholes. In this case, according to the actual length of the manhole, the length of the pipe is measured and cut with a hacksaw. It must be sawed flat and neat. After the docking is completed, the end extending into the manhole is required to be plugged with a pipe plug to prevent foreign objects from invading.

Because the MPP power pipe has very good insulation, it has excellent performance in electricity. For this reason, most of the power grid transformation projects use MPP power pipes, which not only have very good insulation performance, but also have a long service life. Even if buried underground for 100 years, it will not deteriorate.

There are generally three ways to lay MPP power pipes on the MPP power pipe production line: direct burial, cable tunnel laying and pipe laying.

When laying MPP power pipes, pay attention to the following:

1. Be careful when laying MPP pipes and be careful not to damage the cables;

2. Choose appropriate pipes: The selected pipes must be light and strong, so that they are easy to transport and construct;

3. Choose the appropriate laying method: Considering the future maintenance issues, it is recommended to choose the threading pipe laying method.

Jiangsu Xinrongplas Machinery Co., Ltd. has been engaged in plastic extrusion and recycling equipment for 29 years, if you are interested in our products, please contact us!
